E3S-C
Oil-resistive, Long-range Photoelectric Sensor with Metal Housing
Water- and Oil-resistant Photoelectric Sensor with Metal Housing Used for Long-range Sensing
Related Contents
Application Solutions
last update: November 12, 2012
(Unit: mm)
Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.
Sensors

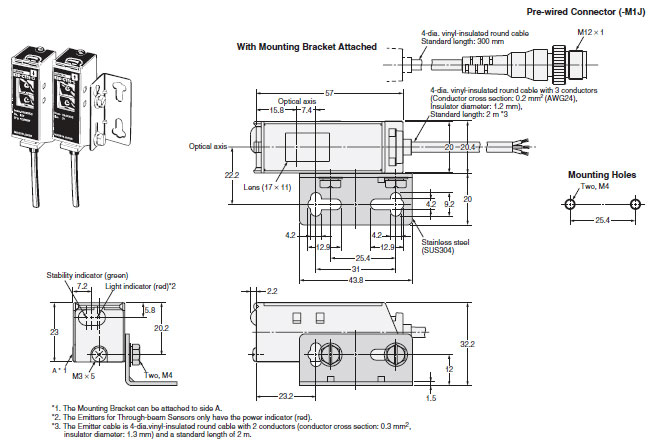

Through-beam (Horizontal)
E3S-CT11(-M1J)
Note: Models numbers for Through-beam Sensors (E3S-CT11(-M1J)) are for sets that include both the Emitter and
Receiver.
The model number of the Emitter is expressed by adding "-L" to the set model number (example: E3S-CT11-L 2M),
the model number of the Receiver, by adding "-D" (example: E3S-CT11-D 2M.) Refer to Ordering Information to
confirm model numbers for Emitter and Receivers.
Receiver.
The model number of the Emitter is expressed by adding "-L" to the set model number (example: E3S-CT11-L 2M),
the model number of the Receiver, by adding "-D" (example: E3S-CT11-D 2M.) Refer to Ordering Information to
confirm model numbers for Emitter and Receivers.
Through-beam (Vertical)
E3S-CT61(-MJ)

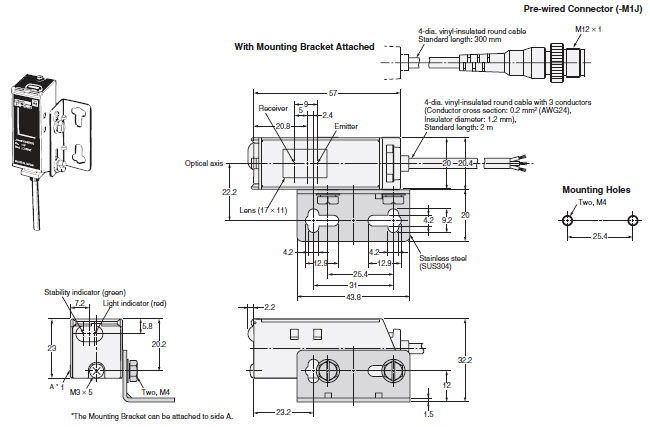

Retro-/Diffuse-reflective (Horizontal)
E3S-CR11(-M1J)
E3S-CD11(-M1J)
E3S-CD12(-M1J)
Note: Models numbers for Through-beam Sensors (E3S-CT61(-M1J)) are for sets that include both the Emitter and
Receiver.
The model number of the Emitter is expressed by adding "-L" to the set model number (example: E3S-CT61-L 2M),
the model number of the Receiver, by adding "-D" (example: E3S-CT61-D 2M.) Refer to Ordering Information to
confirm model numbers for Emitter and Receivers.
Receiver.
The model number of the Emitter is expressed by adding "-L" to the set model number (example: E3S-CT61-L 2M),
the model number of the Receiver, by adding "-D" (example: E3S-CT61-D 2M.) Refer to Ordering Information to
confirm model numbers for Emitter and Receivers.
Retro-/Diffuse-reflective (Vertical)
E3S-CR61(-M1J)
E3S-CD61(-M1J)
E3S-CD62(-M1J)
Accessories (Order Separately)

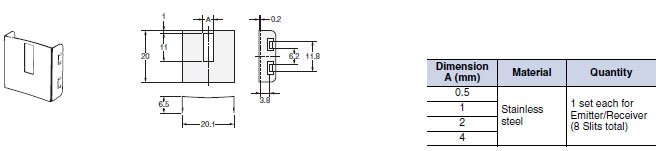

Snap-in Long Slit (For Through-beam Models)
E39-S61
last update: November 12, 2012
