E8F2

Digital Pressure Sensor

E8F2

Pressure Sensor with Easy-to-Read LED Display

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

Features
Lineup
Specifications
Dimensions
Catalog / Manual / CAD / Software

last update: September 24, 2012

(Unit: mm)

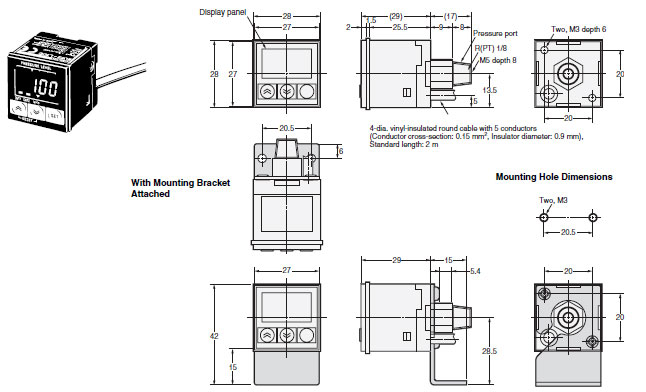

Sensors

E8F2

Accessories (Order Separately)

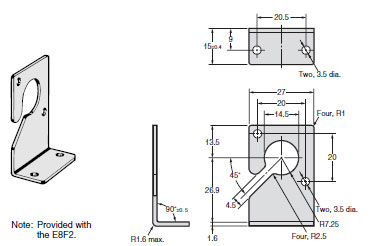

Mounting Bracket
E89-F3

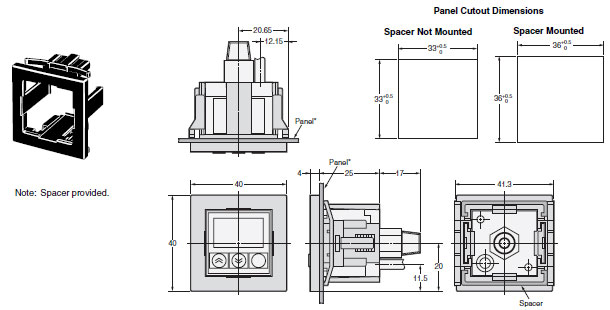

Panel-mounting Bracket
E89-F4

* Applicable panel thickness: 1.2 to 4 mm
Note: The spacer can be removed from the Panel-mounting Bracket.
The panel cutout dimensions can be adjusted as shown above by attaching or detaching the spacer.

last update: September 24, 2012
